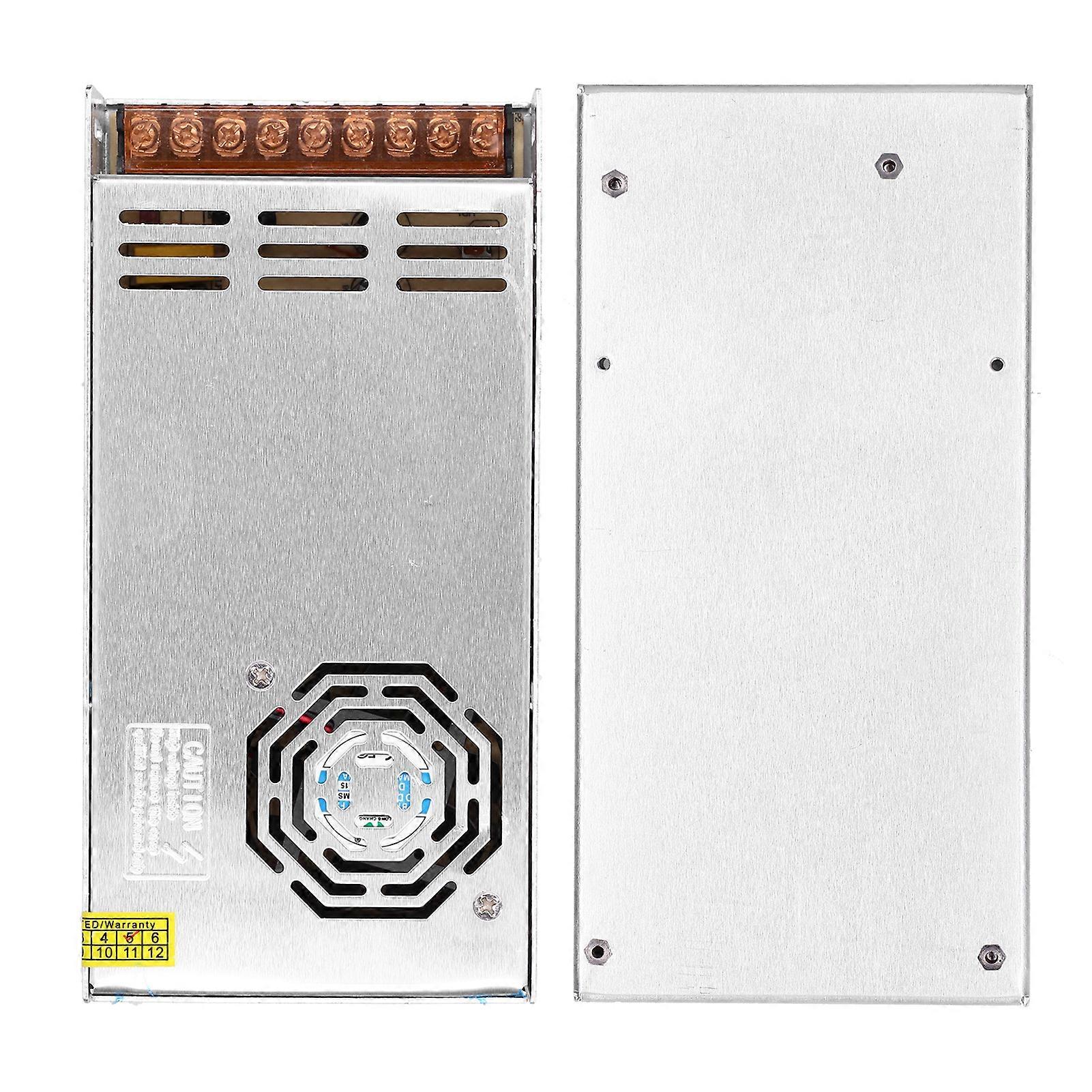

YY‑400‑12 Regulated Switching Power Supply Driver AC 220V to DC 12V 400W 33.4A for Security System Item Type: Switching Power Supply Driver Material: Aluminum Alloy Model: YY-400-12 Input Voltage: AC 170-264V Output Voltage: DC 12V Output Current: 33.4A Error Range: ±1% Adjustable Pressure Range: ±5% Power: 400W Max Waterproof Rating: IP20 Start, Rise, Hold Time: 200ms, 50ms, 20ms Working Temperature and Humidity: -10-60℃, 20%-90%RH Storage Temperature and Humidity: -20-80℃, 10%-95%RH Size: Approx. 200 x 98 x 50mm/7.87 x 3.86 x 1.97in Purpose: Industrial automation, PLC control cabinet, DC motor, medical equipment, access control display system, monitoring equipment, light box advertising, LED equipment How e: Before using the switching power supply product, please read the instruction carefully to check whether the current and voltage of the switching power supply and the load current and voltage meet the requirements for use. 1. When using the switching power supply, be sure to pay attention to the internal high voltage part of the machine, and do not touch the internal components of the machine. Non-professionals should not disassemble the power supply for maintenance, otherwise there is a danger of electric shock. Before use, read the relevant wiring marks 2. When wiring, please turn off the input power. 3. To ensure safe use and reduce interference, please ensure that the ground terminal FG is reliably grounded. (The grounding wire diameter is reasonably selected according to the input voltage and output power) 4. Check whether the mounting screws are in contact with the power supply board components, and measure the insulation resistance between the housing and the input/output to avoid electric shock. 5. Most of the LED switching power supply housing is the heat dissipation part. When installing, increase the contact area between the housing and the case to facilitate heat dissipation and extend the life of the power supply. If the power supply has a built-in fan, the fan's vent should not be blocked. 6. Before the installation is complete, please carefully check whether the wiring is correct, and prevent incorrect or reverse connections. Re-enable after confirming that it is correct
