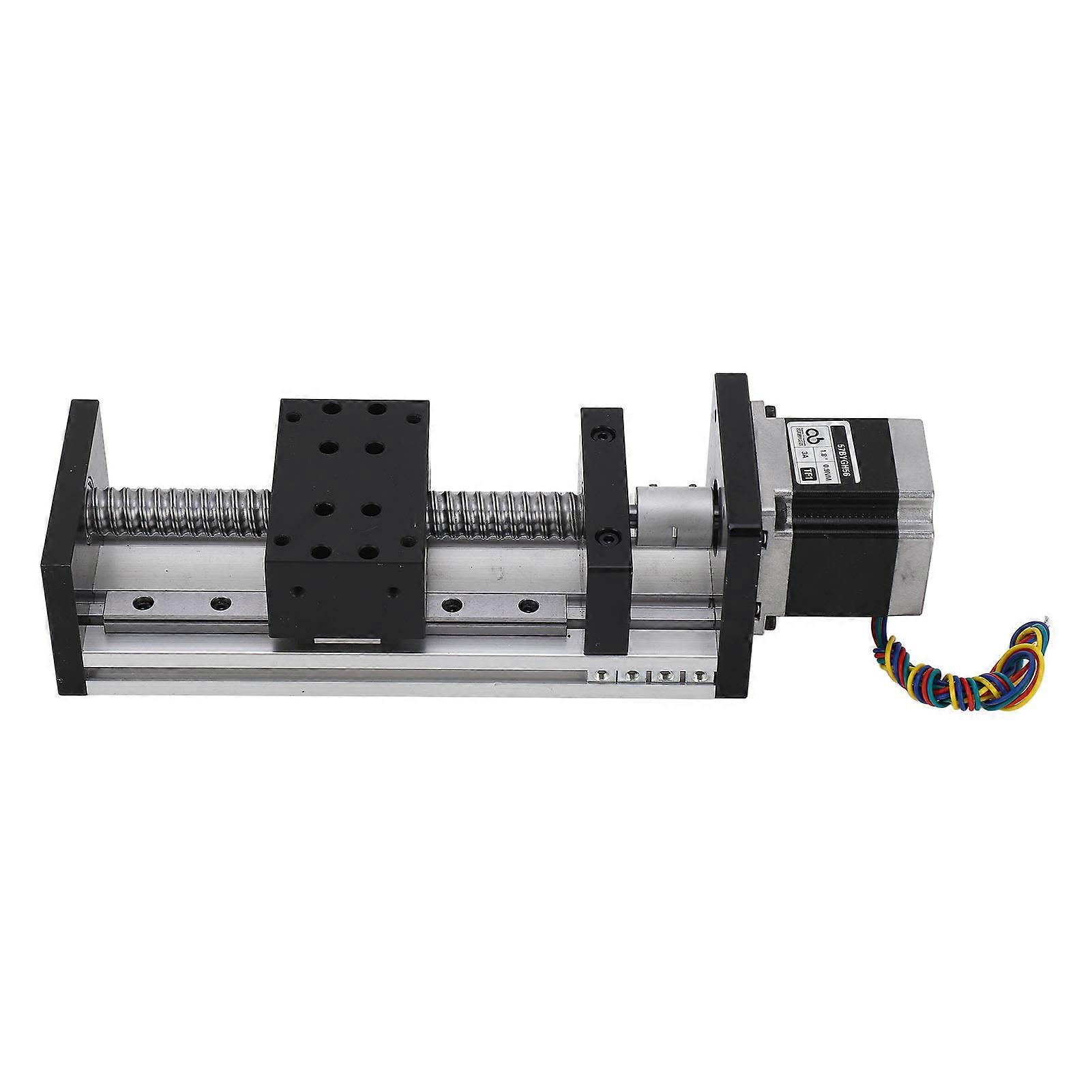

Feature: 1. STROKE AND LOAD: The effective stroke of the linear sliding table is 100mm, with a maximum horizontal load of 50kg and a maximum vertical load of 20kg, stable and reliable. 2. 57 STEPPER MOTOR: The linear sliding table adopts a standard 57 stepper motor with 3A 0.9N.m and 1.8° angle, the total length of the actuator including the motor is 280mm. 3. M5 MOVABLE NUT: The side and bottom of the sliding table are equipped with M5 movable nut, which makes the installation of the sliding table more flexible and versatile. 4. 1605 BALL SCREW: The linear motion slide table is driven by 1605 ball lead screw, diameter of 16mm and pitch of 5mm, with high speed tilting and stable movement. 5. COMBINATION USE: This double track linear slide stage can be combined with cross, T shape, I shape, gantry type, double axes, 3 axes, and 4 axes combination. Specification: Item Type: Linear Sliding Table Model: ECBX1605-100-57 Maximum Load: Horizontal ≤50KG / 110LB, Vertical ≤20KG / 44LB Width: Approx. 80mm / 3.1in Locating Accuracy: ≥0.03mm Maximum Stroke: Approx. 100mm / 3.9in Lead Screw Diameter: Approx. 16mm / 0.6in (1605) Main Function: Convert rotational motion into linear motion, or convert torsion into axial repetitive force Application: This sliding table can be used with cross type, T type, I type, gantry type, 2 axes, 3 axes, 4 axes Actuator Total Length (Including Motor): 280mm / 11in Base Plate Total Length: 225mm / 8.9in. Package List: 1 x Linear Sliding Table
