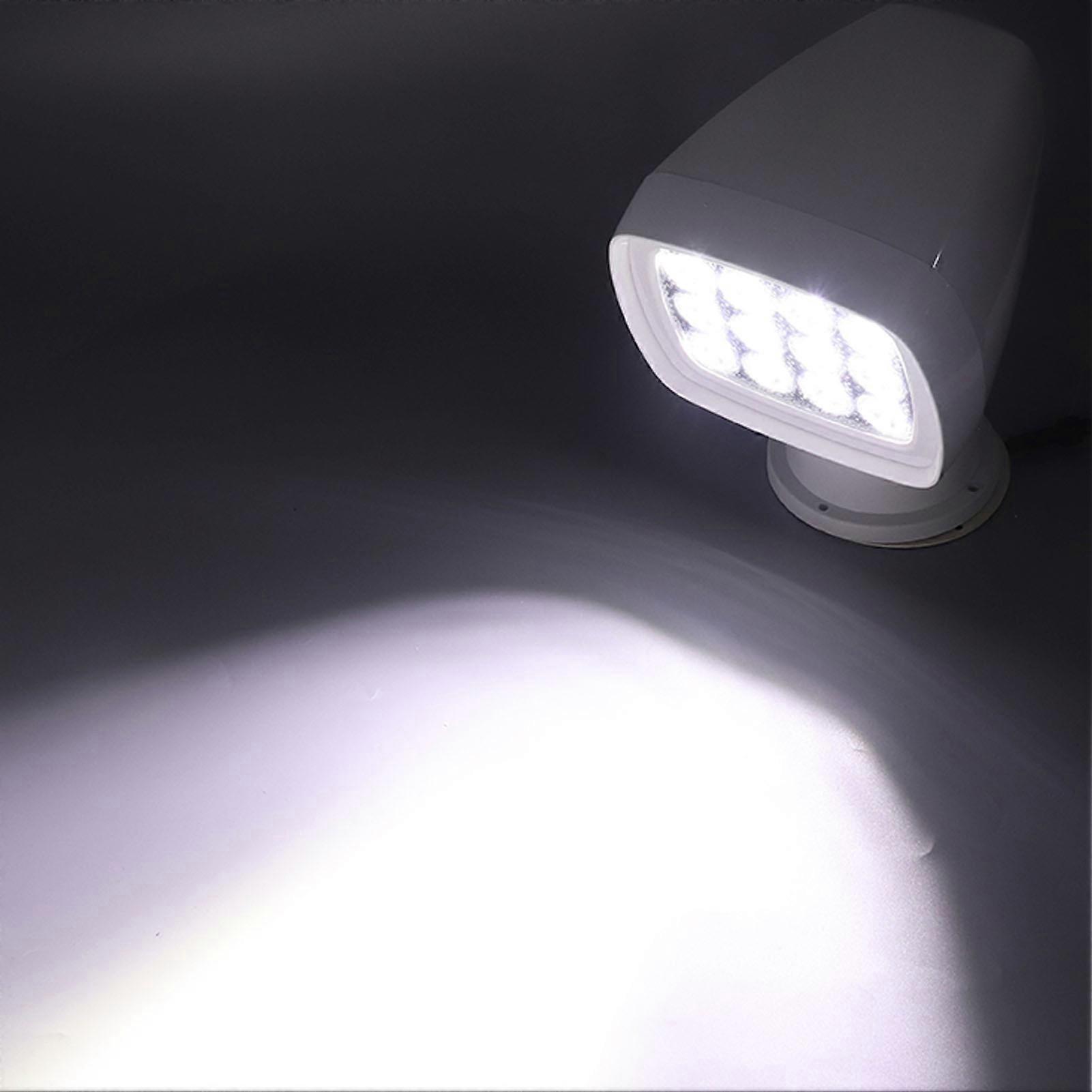

LED Searchlight Remote Control Flashing SOS Mode Spot Light Lamp DC12V 24V 27W for Boat Outdoor Item Type: LED Searchlight Model: E016001 B Material: PC, acrylic, PA. Operation: Remote Control Beam Angle: 6 ± 2° Rotation: 340° Elevating: 22° up, 48° down. Rotation Speed: 8-10° per second under 12V DC, 12-14° per second under 24V DC. Lifting Speed: 11-14° per second under 12V DC, 19-21° per second under 24V DC. Power Cord Length: Approx. 4m / 13.12ft Power Consumption: 27W LED: 12pcs 5W Working Voltage: DC 12V 2.2A or DC 24V 1.1A. LED Color and Color Temperature: Sunlight white, 5500-6300K. LED Beam Angle and Luminous Flux: 120°, 160-190lm. Effective Luminous Flux and Power: 1600lm, 200W. Sensing Distance: Approx. 30m / 98.43ft. Remote Control Frequency: 433 MHz Working Temperature: -20℃ ~ +45℃. 1000 Hours LED Lamp Life Test: The luminous flux maintenance rate > 90%. Waterproof Standard: IP65 Remote Control Battery: 2 X 1.5V AAA, shipped without battery. A. Installation Instructions: 1. The searchlight must be installed on a flat and smooth surface for optimal use. Keep the light far away from the sail, cable anchor or other positions that may cause damage to the light. You need to access the lower side of the selected location and drill at the location. Make sure there are no wires or other structures where the screws need to be drilled. 2. In order to minimize glaring, it is best to install the lights as far ahead as possible and as high as possible. 3. The four base mounting holes and the central harness holes on the mounting surface of the washer must be adopted in accordance with the user manual. 4. Drill four 1/8in pilot holes at the marked points. 5. Please place the white circular mounting washer on the base of the lamp and ensure that the harness passes through the central hole of the washer. 6. Pass the wire from the lamp base through the center hole of the mounting surface. Sealant can be applied around the guide hole and the harness through the installation surface. 7. Wire Connection: The red cable must be connected to the red wire of the searchlight, and the black cable must be connected to the black wire of the searchlight. 8. Fix the lamp on the mounting surface with the lens facing forward. Align the four holes on the lamp holder and mounting gasket with the four corner holes drilled into the mounting surface. 9. Use four M5 self tapping screws to firmly fix the searchlight. Do not overtighten. B. Initial Remote Control Programming: 1. Press and hold the PA button on the remote control. 2. When pressing the button, connect the red wire to the positive terminal and the black wire to the negative terminal. 3. After 10 seconds, release the button pressed. When the button is released, the remote control will be programmed. 4. The remote control will be fully operational. 5. To clear the previous pairing with the remote control, press and hold the CL button, then turn on the power of the light until it flashes once, and then release the CL button. Re pairing the remote control will restore all normal operation.
