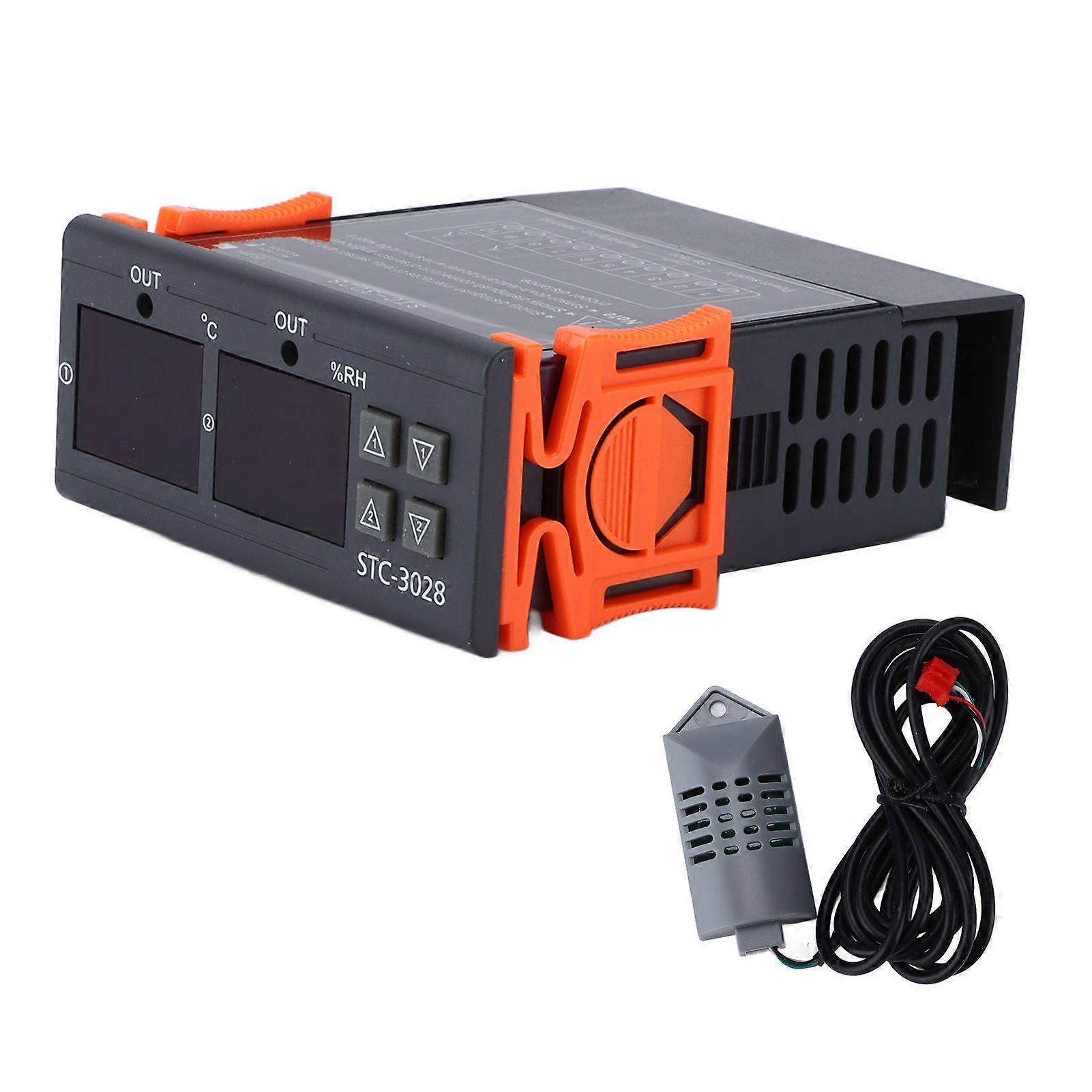

Incubator Temperature Controller Digital Hatchery Temperature Controller for Incubators Refrigerators 110?220V

Features: 1.This temperature controller is equipped with a high accuracy sensor with accurate measurement data and stable performance. 2.The ABS flame retardant shell design is adopted on this incubator temperature controller, which can be more safe and reliable. 3.It is suitable for incubators, household refrigerators, household water heaters, greenhouse cultivation, and supermarket freezing equipment. 4.This incubator temperature controller is not only small in size, but also easy to operate and set in steps. 5.The measurement accuracy of 0.3°C and the temperature measurement range of ?40 to 110°C make this temperature controller stand out. Specification: Item Type: Incubator Temperature Controller Material: ABS Power Supply Voltage: AC110-230V Power Supply Frequency: 50/60Hz Temperature Measurement Range: -40-110℃ Temperature Measurement Accuracy: 0.3℃ Humidity Measurement Range: 0%-100%RH Humidity Measurement Accuracy: 3% Output Control: Relay Output Output Power: Mximum 10A Installation Hole Size: Approx. 28 x 70mm/1.1 x 2.8in Setup essential Start value Stop value (The program automatically determines that the working mode is cooling/dehumidifying mode) Heating/cooling mode setting Setting method: Setting (start temperature): long press the △1 button, the start temperature flashes, and set the start temperature value through the △1▽1 key Setting (stop temperature): long press the ▽1 button to stop the temperature flashing, and set the stop temperature value through the △1▽1 button. Heating use case: Control the water heater, stop heating to 70°C, start heating again when the temperature drops to 45°C, and cycle Step 1: Heating working mode, starting temperature stop temperature Step 2: Long press the △1 button, the start temperature flashes, and set the start temperature to 30℃ by pressing the △1▽1 button Step 3: Long press the ▽1 button to stop the temperature flashing, and set the stop temperature to 25℃ through the △1▽ button, and the setting is complete! If there is no operation for 10 seconds, it will automatically return to the normal display state. You can also press △2▽2 to exit immediately. Humidification/dehumidification mode setting Setting method: Setting (starting humidity): long press the △2 key, the start humidity value flashes, and set the start humidity value through the △2▽2 key. Setting (stop humidity): Long press the ▽2 key to stop the flashing of the humidity value, and set the stop humidity value through the △2▽2 key. Humidification example: To humidify the supermarket, control the humidifier to 50% RH to start humidifying, and to stop humidifying when humidified to 80% RH. Setting steps: Step 1: Long press the Δ2 key to start the humidity value flashing, and use the △2▽2 key to set the start humidity value to 50%RH Step 2: Long press the ▽2 key to stop the humidity value flashing, and set the stop humidity value to 80%RH through the △2▽2 key, and the setting is complete! Press the key for 10 seconds without operation, it will automatically return to the normal display state, or you can press the △1▽1 key to exit immediately. Dehumidification example: Workshop control exhaust dehumidification system, humidity 75%RH starts dehumidification, humidity 45%RH stops dehumidification Setting steps: Step 1: Long press the △2 key to start the humidity value flashing, and use the △2▽2 key to set the starting humidity value to 75%RH Step 2: Long press the ▽2 key to stop the humidity value flashing, and set the stop humidity value to 45%RH by pressing the △2▽2 key, and the setting is complete! Press the key for 10 seconds without operation, it will automatically return to the normal display state, or you can press the △1▽1 key to exit immediately. Temperature correction Temperature correction: Press the △1▽1 key at the same time for 5 seconds to start the temperature digital flashing, and it will display 00. Set the start temperature correction value through the △1▽1 key. After the setting is completed, press the button for 10 seconds without any operation, and it will automatically return to the normal display state. You can also press the △2▽2 button to exit immediately. Humidity correction Humidity correction: Press the △2▽2 key at the same time for 5 seconds to start the humidity number flashing, display 00, and set the start humidity correction value through the △2▽2 key. After setting, press the button for 10 seconds without any operation, and it will automatically return to the normal display state. You can also press △1▽1 to exit immediately. PackageList: 1 x Controller 1 x Probe 1 x Manual Note： Danger: 1. Strictly distinguish the sensor lead, power cord and output relay interface, do not connect wrongly, and the relay must not be overloaded; 2. All wiring changes must be done with the power supply disconnected. Warning: This product is forbidden to be used in water or excessively humid environments, and it is forbidden to use it in high temperature, strong electromagneti
