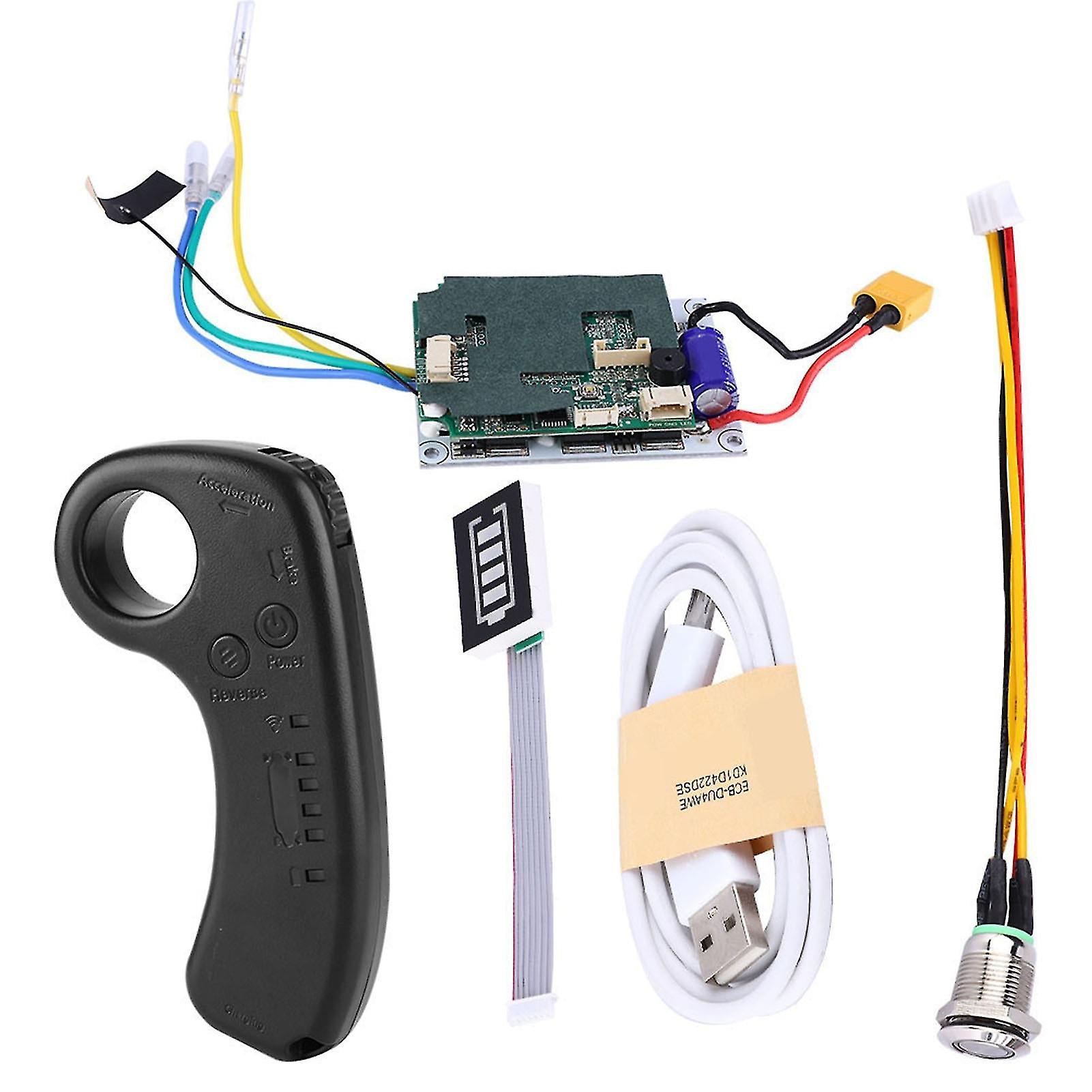

Features: Made of high quality chip and electronic components, single drive design can excellent and stable performance. The solid structure of mainboard can greatly lengthen the service life. With remote receiver module, so it supports remote control. The well-organized circuit board is easy to install, but needs professional skills. This electric longboard skateboard control system has EMP control module with remote module, it can do as ESC do. With over-voltage, under-voltage, overheating,over-current protection, safe and reliable to use, supports speed control, easy to use. With a LED indicator that displays signal status, speed modes, battery percentage.Specifications:Single Motor Drive ESC:Rated Voltage: 36VCurrent: 12APower: 430W (36V)Rotate Speed: 3000rpmMax Speed: 35km/hDrive Mode: FOCSensing Mode: HallMax Load Bearing: 120kgProtection: Over-voltage, Under-voltage, Overheat, Stall, CW/CCW, Overcurrent, Speed ControlPackage List:1 x Control1 x Remote Control Transmitter1 x LED Battery Indicator1 x Switch1 x USB Cable How to choose the right controller:1. Confirm how much voltage your battery is 6 string battery is 25.2V 7 string is 29.4V 10 string battery is 36V2. Confirm the type of motor, external motor chain, belt drive, belt type controller, hub motor, motor integral wheel. Please select the controller of the wheeltype.3. Confirm single drive or four drive. One controller drives a motor to be a single drive. One controller drives two motors to be a double drive. One controllerdrives four motors to be four-wheel drive. The remote controller matches the main controller with a signal description:1: Connect the main control to the power supply2: The power is turned on, wait for two seconds, then press and hold the key for about 6 seconds. Wait until the switch indicator flashes.3: Turn on the remote control switch and use a small screwdriver to press the button inside the small hole in the lower left corner of the remote control.4: The remote control is turned off for two seconds and then turned on. Wait for the remote control signal light and the switch signal light to flash at the sametime to indicate that the match is successful Note:1. The driver board is a high-precision circuit board. Do not touch the metal object/liquid to the board before and during use to avoid internal short circuit 24VESC must use a voltage above 24V, the maximum voltage can be used is 29.4V (the ESC won't work below 24V). 36V ESC must use a voltage above 36V, themaximum voltage can be used is 48V (the ESC won't work below 36V).2. Do not connect motor lines in parallel to allow single drive to drag two motors.3. No Installation Guides are included, professional usage is strongly recommended.4.Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.Wireless Controller Operating Instructions:1. Controller Start Way: The controller switch button has two lines , plug in this switch. When the Controller is powered, press the switch, hear thesound:"drop", the control board flashing red light, indicating that the control board has been activated. Close the control board as above, press again is ok.2. Control Board and The Motor Connection Way: motor with rubber head of the three thick line is the power cord, five side by side with the thin line is the Hallsensing line. For ease of operation, this controller setting is the single drive mode.
