DIY 5V Voice Switch Module Accessory Kit, Acoustic Sound Control Panel

₱549.00
FREE Shipping

DIY 5V Voice Switch Module Accessory Kit, Acoustic Sound Control Panel

  • Brand: Unbranded

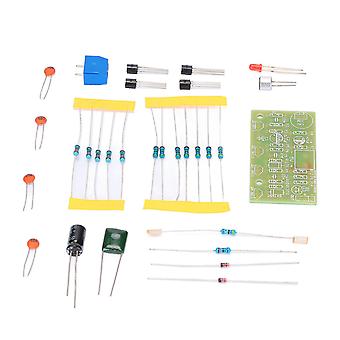

  • product image
DIY 5V Voice Switch Module Accessory Kit, Acoustic Sound Control Panel

DIY 5V Voice Switch Module Accessory Kit, Acoustic Sound Control Panel

  • Brand: Unbranded
RRP: ₱699.00
Price: ₱549.00
You save: ₱150.00 (21%)
Sold by:
₱549.00
FREE Shipping

In stock

We accept the following payment methods

Description

Feature: 1. Better Control: With this voice switch module, you can easily control the switch just by clapping your hands, suitable for DIY. 2. Stable Working: Q1 and Q2 composed of two audio amplifier circuit, the audio signal is accepted by the MK1, C1 is coupled to the base of Q1 pole, amplified and fed directly from the collector to the base of Q2 to a negative square wave at the collector of Q2, with to trigger the bistable circuit. 3. Great Accuracy: R1, C1 circuit frequency response is limited to about 3kHz to high sensitivity range. The power is turned on, the state of the bistable circuit Q4 off, Q3 saturated, D3 does not shine. 4. Efficient Work: When MK1 received control signal, and a negative square wave output after two enlarged, negative spikes through D1 add to the base of Q3, the circuit rapidly flip, D3 is lit after differential processing. 5. Quick Response: When MK1 again connected to the control signal, the circuit and flipped, D3 is off. Circuit board reserved for the terminal J1 access outside the control equipment and other devices through the J1 connector relay voice. Then relays required at both ends of the relay coil anti and a diode. Specification: Item Type: Voice Switch Module Working Voltage: 5V PCB Size: Approx. 28 x 49mm / 1.1 x 1.93in. Package List: 1 x Voice Switch Module Kit
  • Fruugo ID: 414030627-874822147
  • EAN: 7908770594411

Product Safety Information

Please see the product safety information specific to this product outlined below

The following information is provided by the independent third-party retailer selling this product.

Product Safety Labels

CE Mark
Safety Warnings: Warning: Please read the product instructions carefully before use to ensure correct use.
Serial Number: 7908770594411

Delivery & Returns

Dispatched within 2 days

  • STANDARD: FREE - Delivery between Mon 20 October 2025–Mon 27 October 2025 - FREE

Shipping from China.

We do our best to ensure that the products that you order are delivered to you in full and according to your specifications. However, should you receive an incomplete order, or items different from the ones you ordered, or there is some other reason why you are not satisfied with the order, you may return the order, or any products included in the order, and receive a full refund for the items. View full return policy
