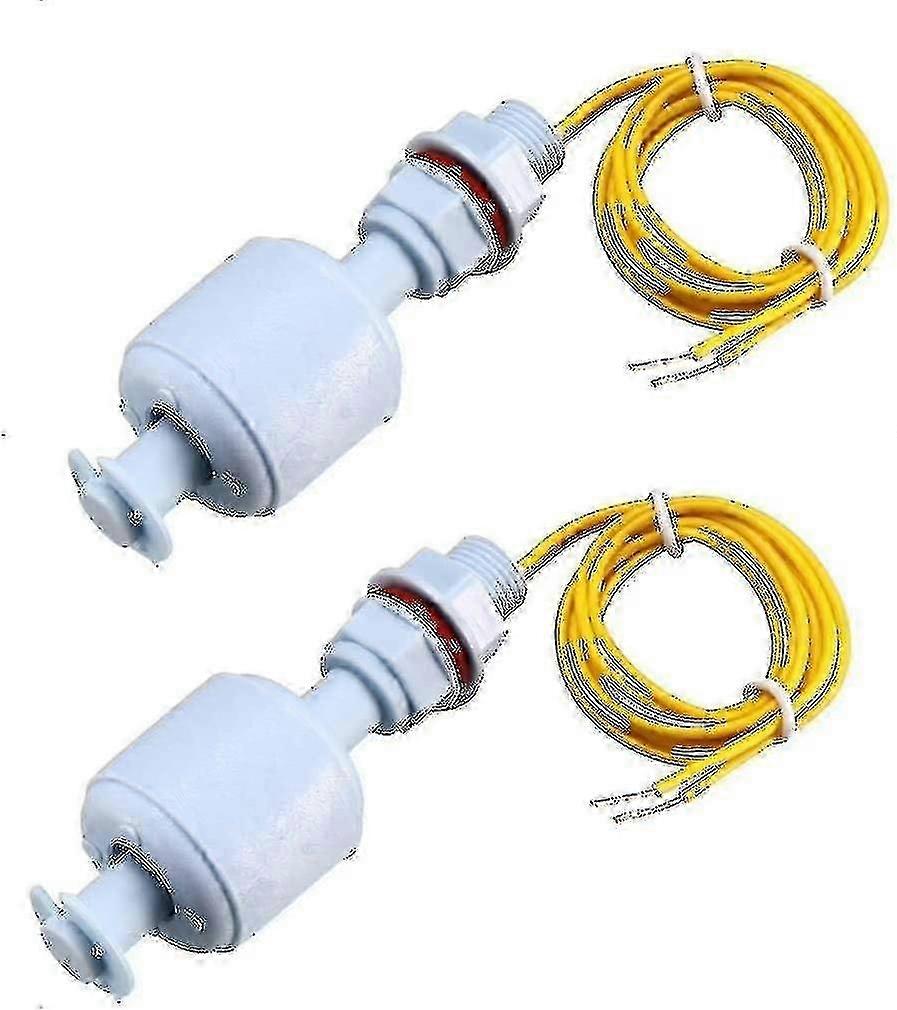

Total Length: 67mm/2.6"; Float Ball Size (Approx.): 24 x 23mm/0.94" x 0.91"(L*D); Thread Diameter (approx.): 10mm/0.39"; Cable length: 40cm/15.7"_x005f_x005F_x005f_x005F_x005f_x005F_x005f_x005F_x005f_x005F_x005f_x005F_x005f_x005F_x005f_x000D_Maximum switching voltage / current: 110V DC / 0.5A_x005f_x005F_x005f_x005F_x005f_x005F_x005f_x005F_x005f_x005F_x005f_x005F_x005f_x005F_x005f_x000D_HOW TO WORK - Using a magnet to detect the reed switch. The float switch is mainly composed of a magnetic spring switch and a float. There are magnetic materials in the float. When the float rises and falls with the water level, it will touch the magnetic spring switch to detect the position of the liquid_x005f_x005F_x005f_x005F_x005f_x005F_x005f_x005F_x005f_x005F_x005f_x005F_x005f_x005F_x005f_x000D_WIDE APPLICATION - The float switch can be used for water heating equipment such as water dispenser, water heater, humidifier, etc. It can also be used for water tower, drainage pool, water tank, culture pond, etc. _x005f_x005F_x005f_x005F_x005f_x005F_x005f_x005F_x005f_x005F_x005f_x005F_x005f_x005F_x005f_x000D_PLEASE NOTE - As the current the switch can carry is very small (0.5A), you need to use a relay or contactor when connected by a load, the relay or contactor is not included here. Note: Due to the light and screen setting difference, the item's color may be slightly different from the pictures. Please allow slight dimension difference due to different manual measurement. Sold by-Minnanxin
