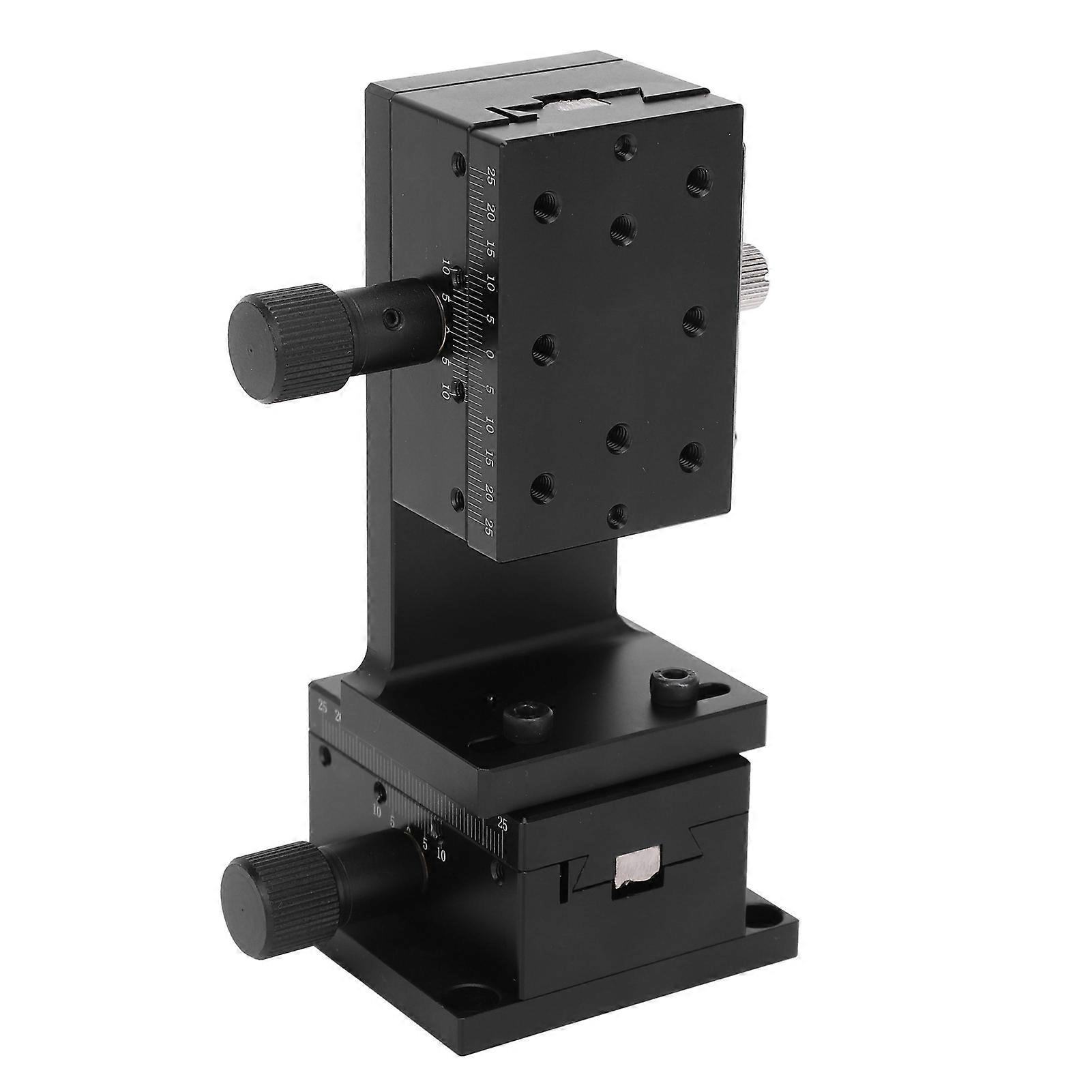

Item Type: Linear Stage Manual FineTune Platform Body Material: Aluminum Alloy (black anodized) Color: Black Model: HBLX-A60 Table Surface Size: Approx. 40x60mm/1.6x2.4in Product Overall Height: Approx. 130mm/5.1in Moving Direction: AZ-axis, 2 directions Movement Method: Rotating gears and rotating handles to advance Sliding Track: Gear guide Rail Type: Dovetail groove type Number Of Countertop Threaded Holes: 8pcs Threaded Hole Diameter: Approx. 4mm/0.2in Threaded Hole Depth: Approx. 6mm/0.2in Withstand Load: 49N (5Kgf) Up and Down Movement Stroke: 20mm Minimum Scale: Approx. 0.01mm/0.0004in Moving Parallelism: 0.05mm/13mm Structure: Detachable Application: Optical equipment, measuring devices, semiconductor manufacturing equipment, testing machines, microscopes, photographic equipment, handling machines, processing machines, medical machines, printing machines and others. How to Use: 1. The mechanical sliding table is a general component that completes the feed movement. The complete mechanical sliding table is composed of the sliding table part and its moving common parts, the complete mechanical sliding table part and other moving device brakes and other auxiliary parts. According to the process requirements of the machined parts, a power box (with multi-axis box) drilling head, boring head, milling head, boring head, turning head, etc. are installed on it to form various combined machine tools to complete drilling and expansion. , Reaming, scraping end face, chamfering, turning end face, milling, drilling and tapping, etc. Deep hole processing can be completed by configuring a graded feed mechanism on the sliding table (the graded feed mechanism is only used for specifications below HJ32) 2. The sliding table can be installed on the side base or column, and can also be installed on the inclined base to form a horizontal, vertical or inclined combined machine tool.Manual FineTune Platform Package List 1 x Sliding Table 1 x Manual 1The main body is made of highquality aluminum alloy, which is light, strong and resistant to friction. 2Quiet, no loud sound when working, scratchproof, dropproof, and corrosionproof. 3Gear rotation handle control, dovetail groove guide, for high accuracy, smoothness, high load resistance and stable movement. 4R angle protection, safety protection, for high practicability and high reliability. 5The surface is treated with black anodic oxidation, which is not easy to rust and can be used for a long time.
